Diode Laser
TiteLUXE’s 3-wave technology combines 755 nm, 808 nm, and 1064 nm wavelengths to target a broad spectrum of hair colors and follicle depths. Enhancing this capability, its Intelligent Hair Removal utilizes AI-powered technology to automatically optimize treatment parameters based on hair type, treatment area, and patient gender.
TiteLUXE also features two specialized treatment modes—Stacking Mode, which delivers multiple stacked pulses to a single area, and Dynamic Mode, which emits continuous pulses during motion. With these modes, a signature treatment developed for skin brightening, tightening, and lifting (BTL) treatments.
For expanded functionality, the optional vascular handpiece allows for the effective treatment of vascular lesions, broadening the clinical utility of the TiteLUXE platform.
3-wave technology: 755, 808, 1064 nm
The diode laser is considered the safest and most effective hair removal laser.
Additionally, it is known for its long-term durability and stable energy output.
With short treatment times and no need for consumables, it provides a convenient and efficient solution for hair removal.

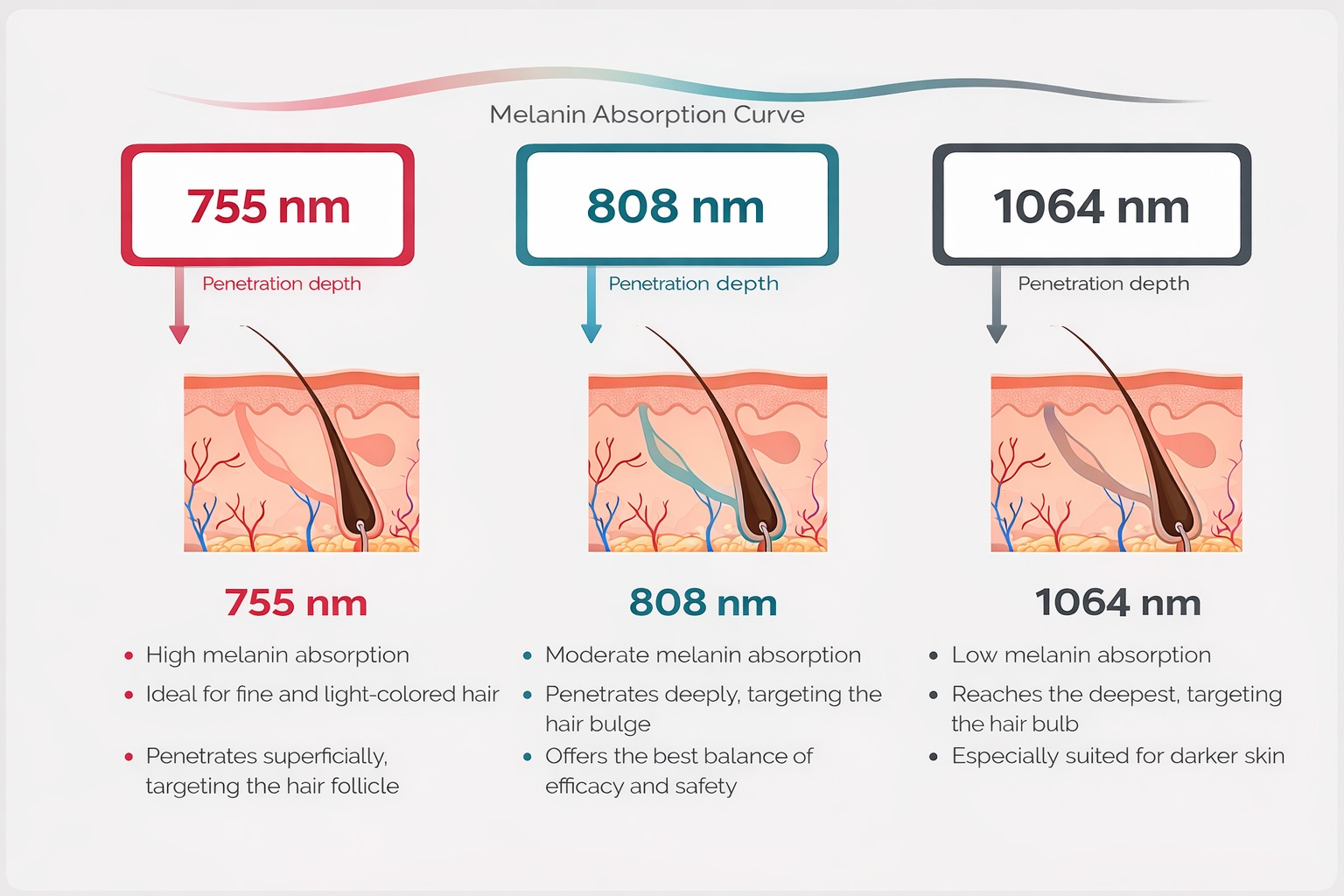

755 nm, 808 nm, and 1064 nm are considered the safest and most effective wavelengths for hair removal. With 3-wave Technology, these three wavelengths are delivered simultaneously, targeting different tissue depths and specific structures within the hair follicle for optimal results.

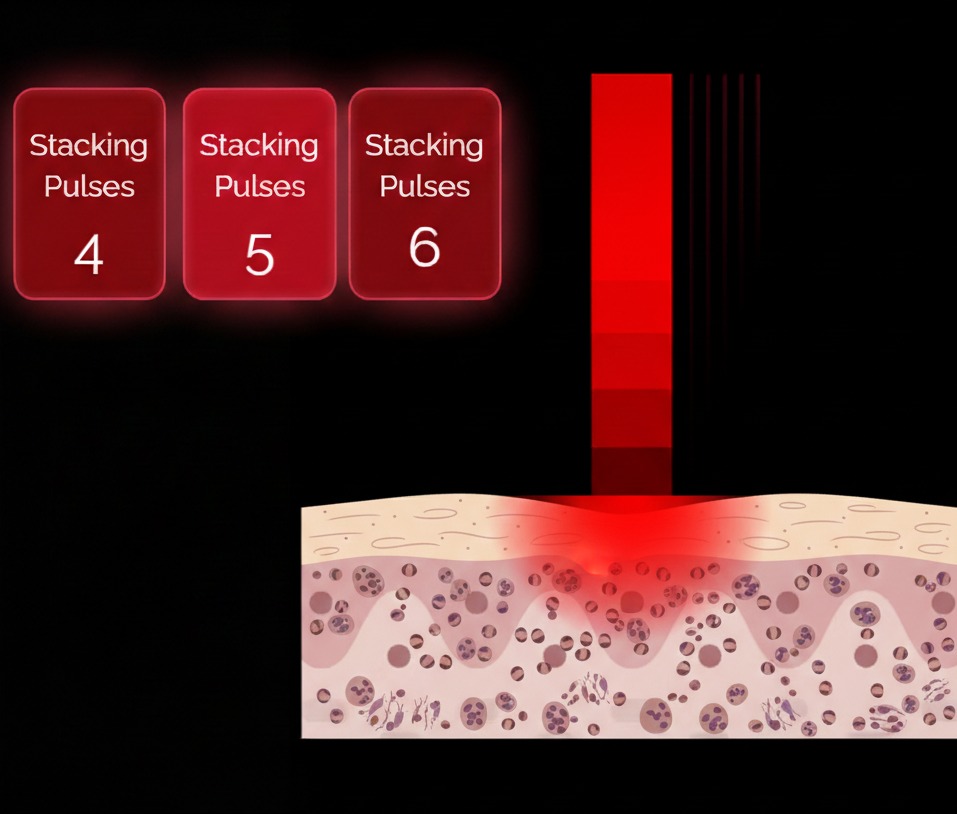

Stacking Mode
Stacking Mode delivers multiple stacked pulses to a single spot for enhanced depth and thermal effect.

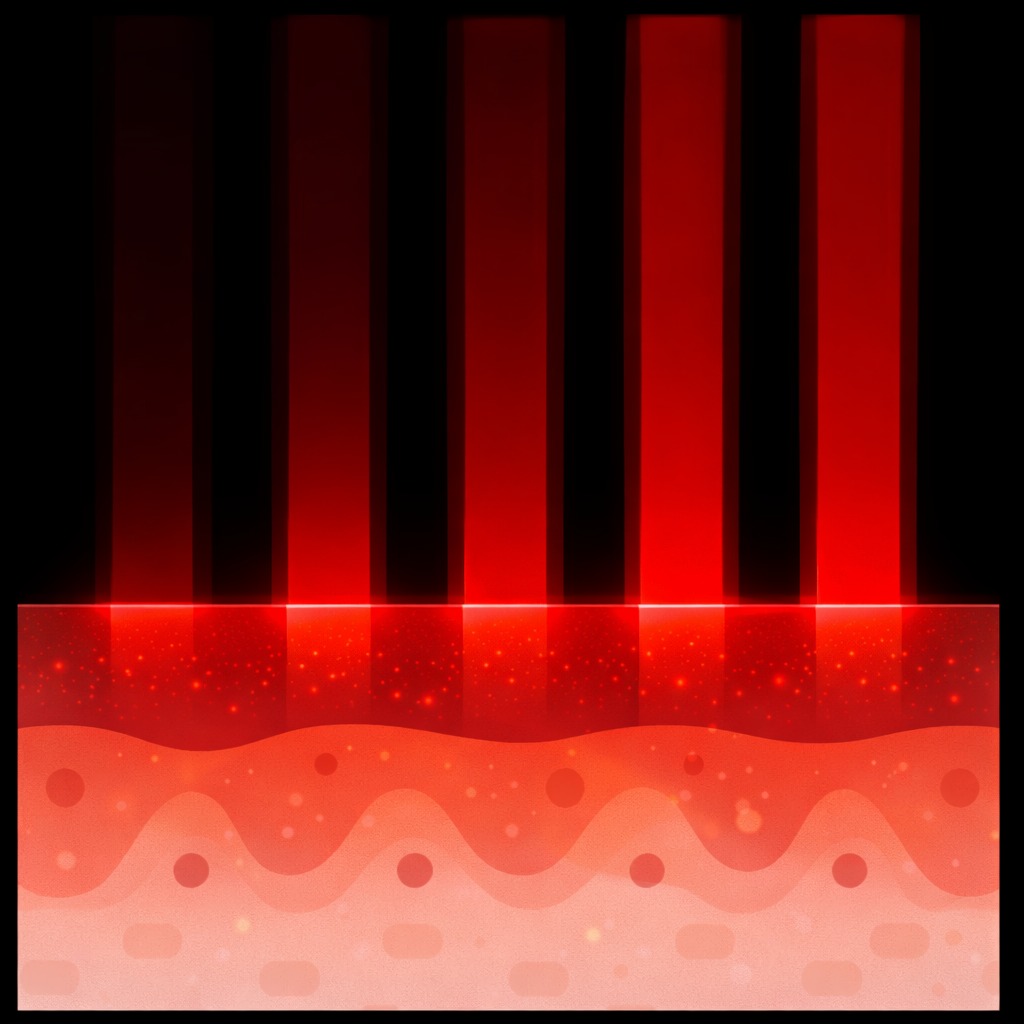

Dynamic Mode
Dynamic Mode emits multiple continuous pulses while in motion, allowing for uniform energy distribution over larger areas.
New indications (BTL): brightening, tightening, lifting
Physicians can perform treatment for brightening, tightening, and lifting.
Special tip for vascular lesions
This option enables precise and effective treatment of vascular lesions, such as telangiectasia and spider veins.
Physicians can utilize this mode to specifically target the linear structure of blood vessels, as it delivers laser energy exclusively along the path of the vessels while sparing the surrounding healthy skin.
This focused delivery minimizes the risk of side effects and ensures safe, targeted treatment.
Special tip
for vascular lesions
AI-powered hair removal
parameter optimization
Multiple stacked pulses
to a single spot
Multiple stacked pulses
to a single spot
New indications (BTL):
brightening, tightening, lifting
Special tip
for vascular lesions
*Optional handpiece.
Indication & Technical Specification
Hair Removal |
|
|
|
|
|
|
|
|
|
BTL |
Vascular |
|
|
|
|
|
|
Laser Type |
Diode Laser |
| Wavelength | 755, 808, 1064 nm |
| Power | 2,500 W |
| Frequency | 1-10 Hz |
| Pulse Duration | 2-100 ms |
| Spot Size | 12×24, 12×12 |
| Spot Shape | Circle, Square |
| Cooling | 1°C |
| Electrical Requirements | 230 V, Single phase, 50/60 Hz |
