duo-LUXE

Alexandrite & Long-pulsed Nd:YAG Laser

DuoLUXE is an innovative long-pulsed laser device developed by IDS, featuring a real top-hat uniform beam profile and dual wavelengths—1064 nm and 755 nm—within a single platform for a wide range of indications including hair removal, treatment of vascular lesions and pigmented lesions and more. What sets DuoLUXE apart is its unique capability to simultaneously deliver both 1064 nm and 755 nm wavelengths, allowing physicians to precisely target diverse chromophores at varying depths, enabling a versatile approach.

Moreover, the DuoLUXE offers enhanced versatility through its provision of two handpieces—the zoom and cartridge handpieces—to cater to different treatment needs. Additionally, it provides two cooling options—gas or air—allowing physicians to customize treatments. Notably, its gas component boasts an extended lifespan of up to 25,000 shots.

Effect and safe treatment by top-hat beam profile

The top-hat beam profile ensures a uniformly distributed energy pattern across the treatment spot size, guaranteeing consistent and predictable outcomes. This uniformity also minimizes the risk of side effects caused by localized hot spots.

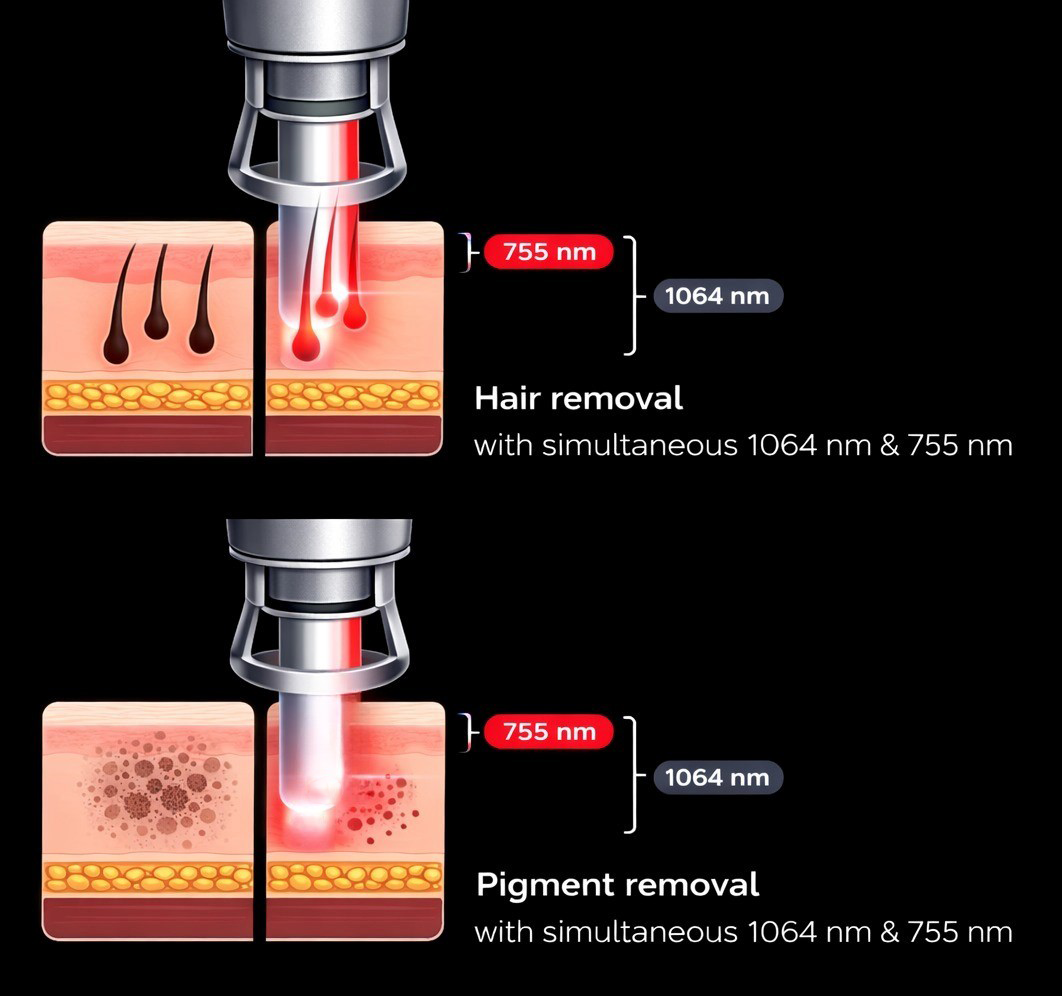

Simultaneous 1064 nm and 755 nm

The DuoLUXE’s simultaneous emission of two wavelengths, 1064 nm and 755 nm, enables physicians to effectively target diverse chromophores at different depths, presenting a versatile approach to treatments.

For instance, by emitting both 1064 nm and 755 nm simultaneously, physicians can perform hair removal treatments tailored to various hair types—whether thick or thin, black or grayish, and at different depths—offering a comprehensive solution. This adaptability extends to treating pigmented lesions, allowing the targeting of pigments located at varying depths.

Selectable options between
two types of handpieces

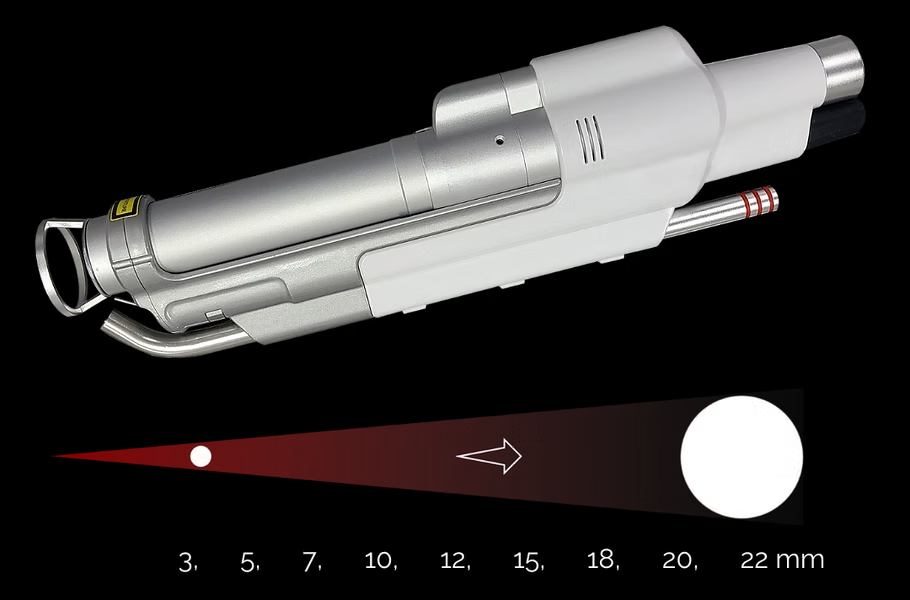

The zoom handpiece allows for easy spot size adjustment without the need to switch handpiece cartridge. Physicians can swiftly rotate the toggle ring to select their preferred spot size, saving valuable treatment time. Moreover, this eliminates the necessity to purchase numerous handpiece cartridges, resulting in cost savings on investments.

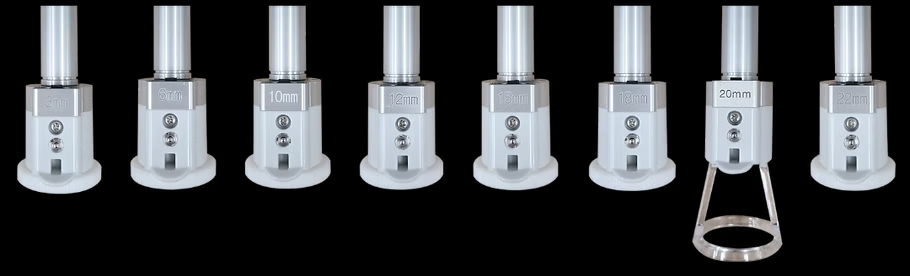

For physicians who are accustomed to using cartridge-typed long-pulsed lasers from different manufacturers and find it more comfortable, opting for a cartridge handpiece over a zoom handpiece is an option.

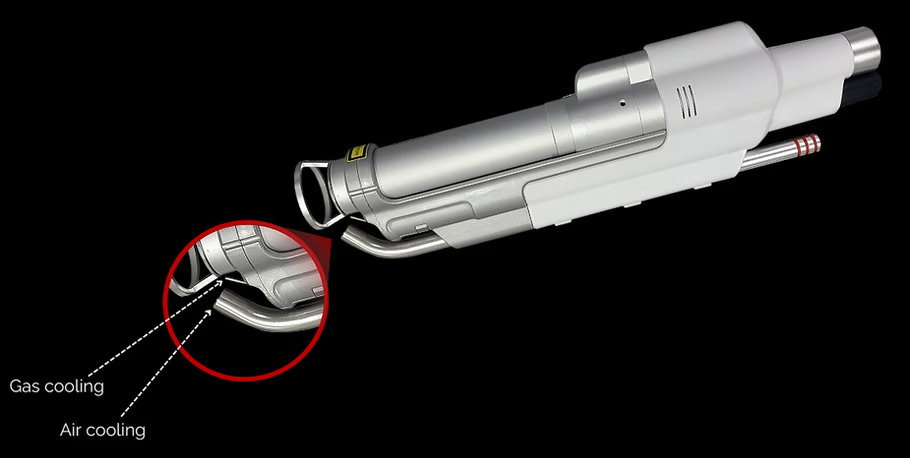

Two Cooling Options





Two cooling options are available: the ‘Gas-type’ and ‘Air-type.’ Physicians have the flexibility to select either based on their specific requirements for the intended treatment.

Effect and safe treatment

Simultaneous 1064 nm and 755 nm

Zoom handpiece or Cartridge handpiece

Gas cooling or Air cooling

900 gram capacity
Max. 25,000 shots
Refillable

Faster hair removal at 3Hz
Smart protocol
Automatic cooling system
CRYO-ZET





Indication & Technical Specification

Pigmentation

Vascular Lesions

  • Seborrheic Keratosis
  • Rosacea
  • Freckles
  • Spider Veins
  • Dyschromia
  • Hemangioma
  • Telangiectasia
  • Blue vasular
  • Inflammatory Acne

Hair Removal

Rejuvenation

  • Dark/Light hair
  • Wrinkles
  • Thich/thin hair
  • Laxity
  • All body areas
  • All skin types

Laser Type

Nd:YAG, Alexandrite

Wavelength 1064, 755 nm
Energy Max. 90 mJ @1064 nm
Max. 60 mJ @755 nm
Beam Delivery Lens coupled optical fiber with handpiece
Pulse Duration 0.3 – 100 ms
Spot Size 3, 5, 7, 10, 12, 15, 18, 20, 22 mm (Zoom HP)
3, 6, 10, 12, 15, 18, 20, 22 mm (Cartridge HP)
Fluency 1273 J/cm² @1064 nm
849 J/cm² @755 nm
Frequency 1-9 Hz
Aiming Beam 532 nm (<5 Mw)
Cooling Cryo gas & Air Cooling system
